Glass Cockpit Screen SD-10

3 999,00 €

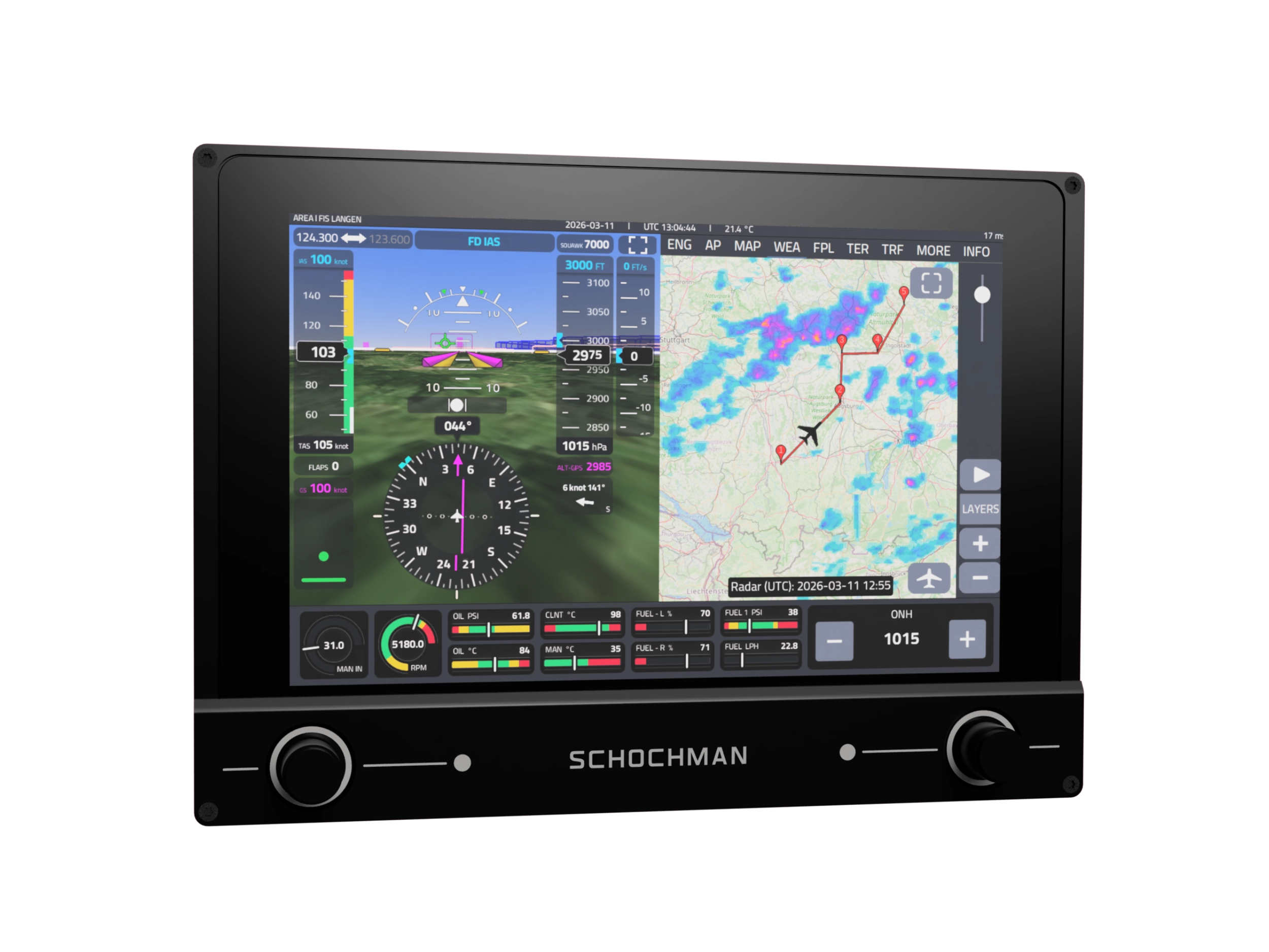

Glass Cockpit Screen SD-10
Glass Cockpit Screen SD-10 - Image 2
Glass Cockpit Screen SD-10 - Image 3
Glass Cockpit Screen SD-10 - Image 4
Glass Cockpit Screen SD-10 - Image 5
Glass Cockpit Screen SD-10 - Image 6

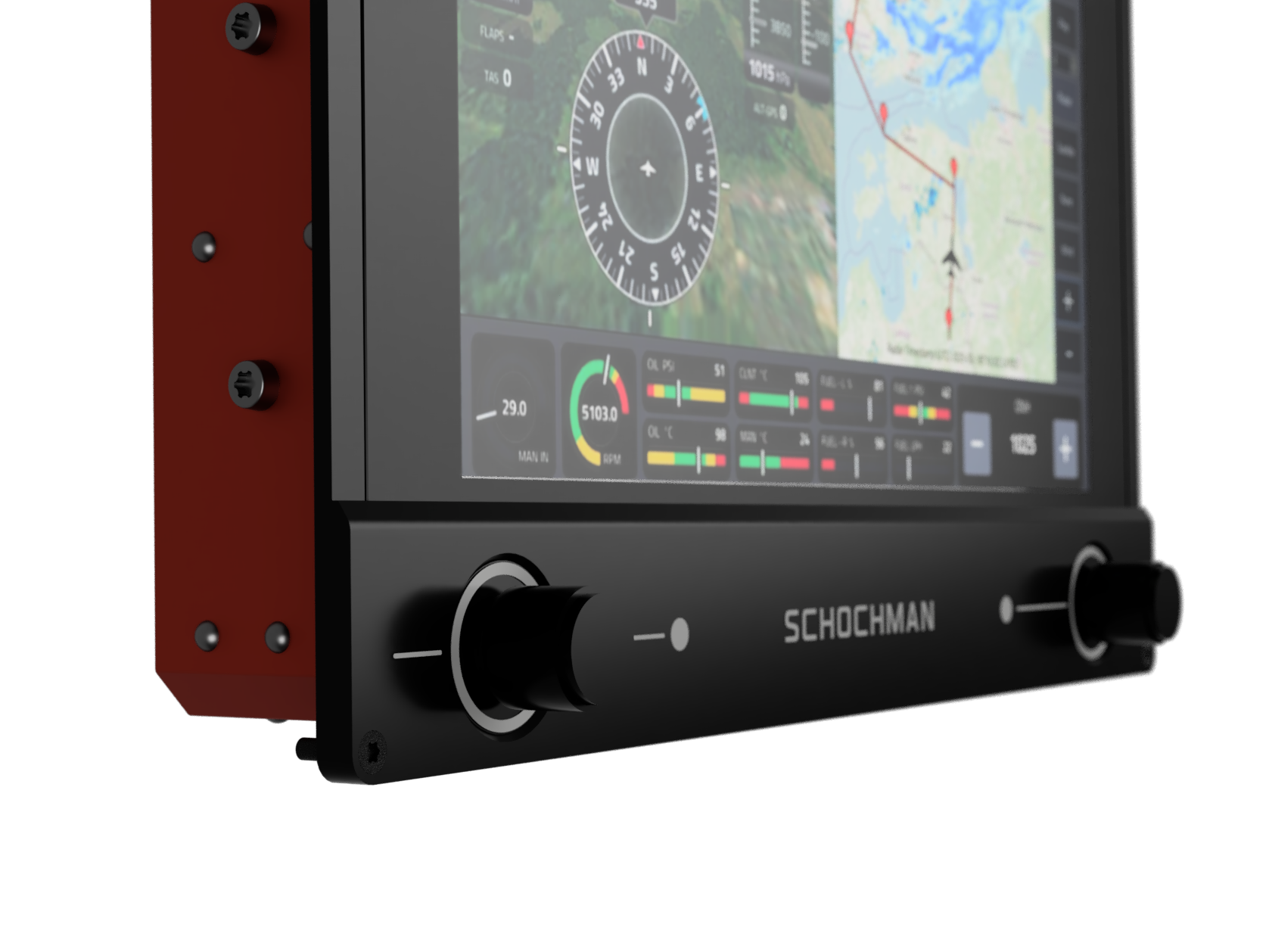

Powerful computer in a very light wing-inspired aluminum construction (1.5kg total weight)


↓ Download Installation Manual
↓ Download 3D & 2D Files

Thin plate stretched over a precision frame, with hermetically sealed electronics inside for efficient cooling, coping with every processing load, temperature, and dust.

Technical data

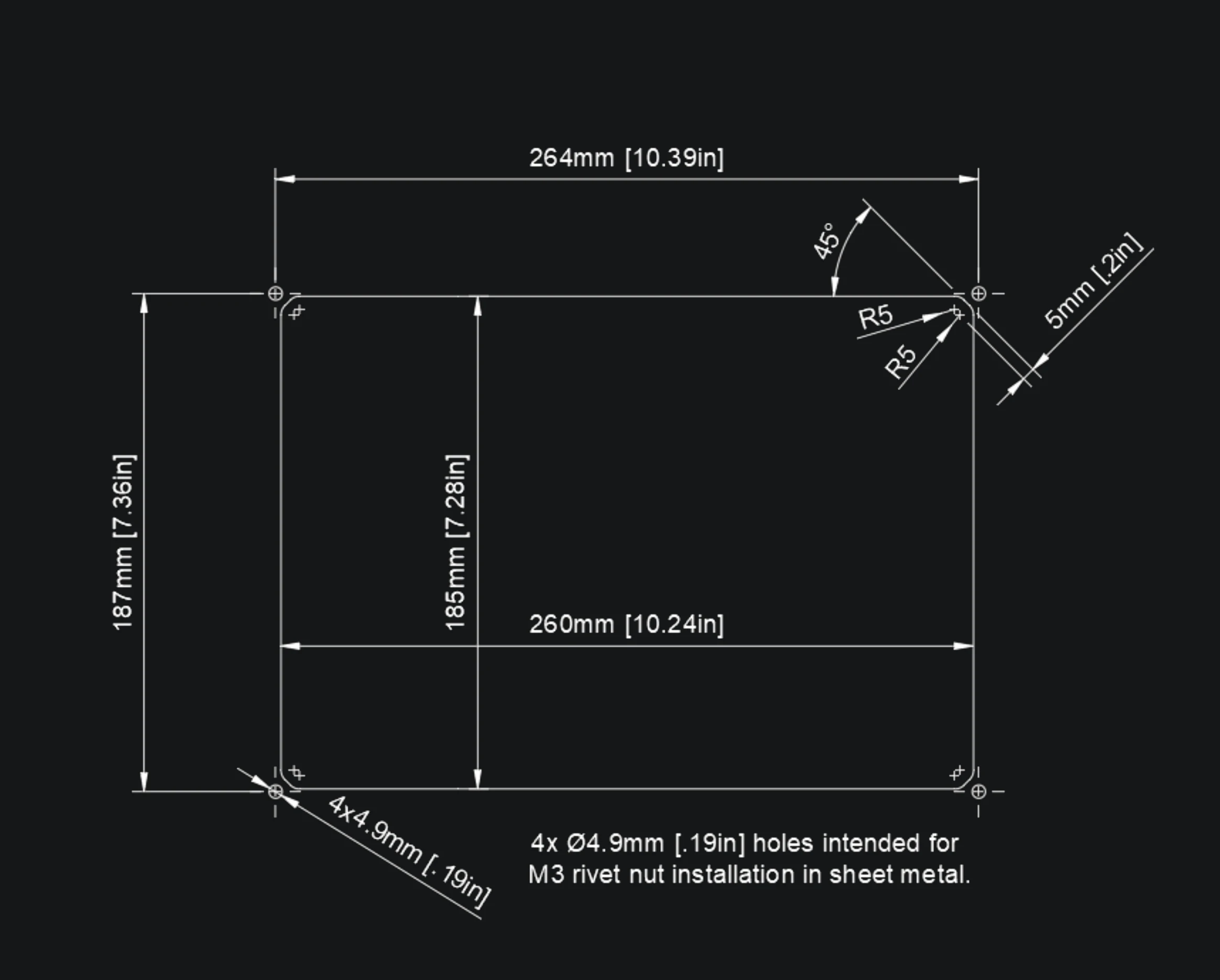

Dimensions (W × H × D) 272 × 195.2 × 70.5 (186.5) mm
Weight 1520 g
Power supply voltage 9 – 28 V DC
Power consumption (typical) 20 W
Power consumption (max) 30 W
Power consumption (2absolute max) 62 W
Current draw (typical continuous) 1.7 A (3@12 V)
Current draw (max continuous) 2.5 A (3@12 V)
Current draw (2absolute max) 6.9 A (3@9 V)
Operational temperature range −20 °C to +60 °C
Interfaces CAN-BUS, USB, Ethernet, Audio headset
Display diagonal 10.1″
Display resolution 1280 × 800 pixels
Display max luminosity 850 cd/m²
Display brightness control Manual or automatic (ambient light sensor)
Touchscreen type Projected capacitive (PCAP)

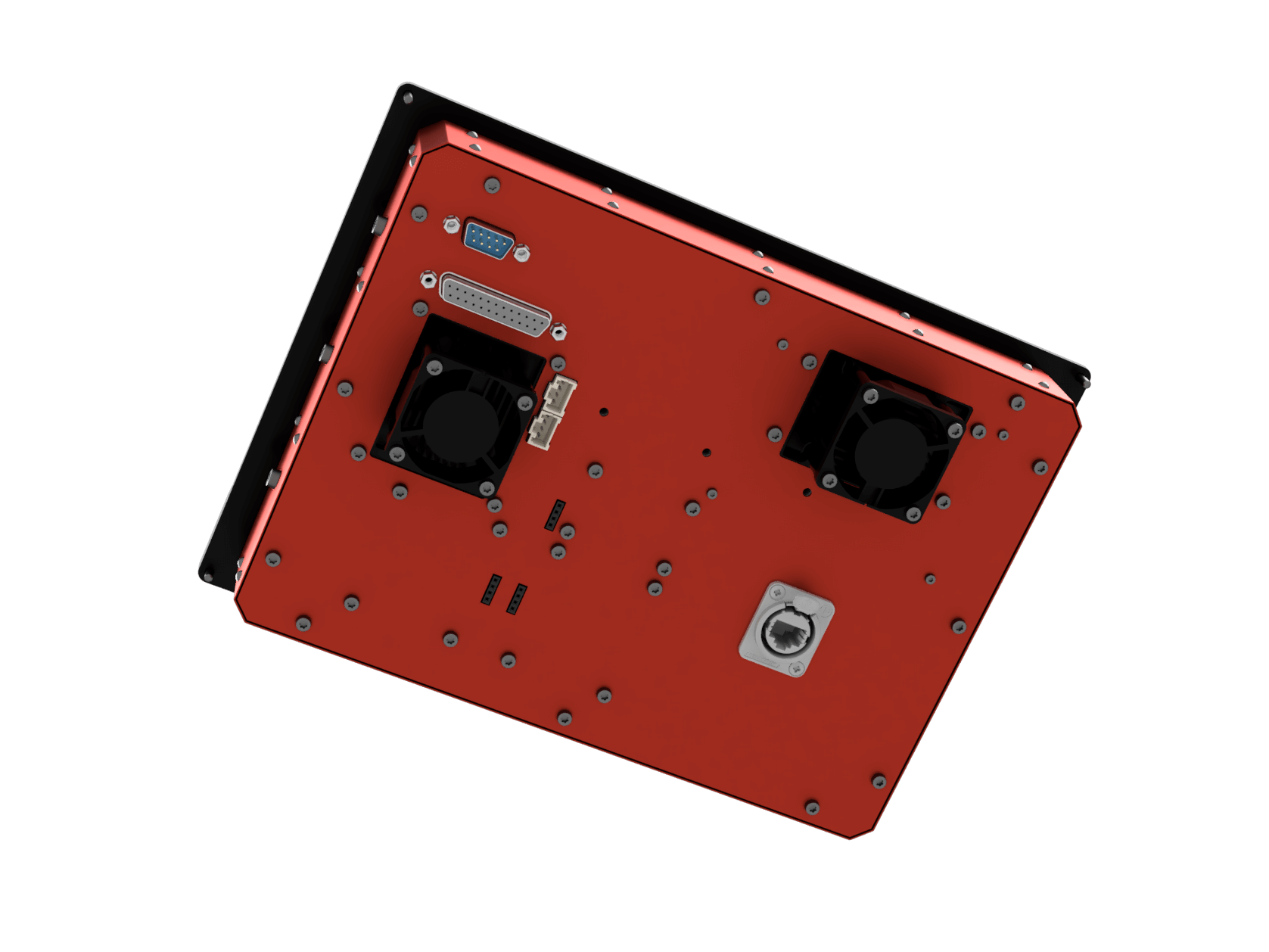

Cooling method Active (2 fans)

1 Depth including connectors
2 Short-duration peak current/power during worst-case heavy load conditions
3 At nominal supply voltage

Pricing Notes

All prices exclude VAT, shipping, handling costs, duties, import taxes and will be calculated in the quote we will send you.

Product Use Disclaimer

Not certified for use in certified aircraft. Buyers are solely responsible for ensuring compliance with applicable local aviation regulations before installation and use.

Order & Payment Terms

Full payment is required prior to shipment. For large or custom orders, contact us to discuss terms.

Shipping Information

Worldwide shipping available.
Estimated delivery times will be confirmed upon order.

Warranty and Support

Hardware is covered by a 1-year limited warranty from the date of delivery, covering return, repair, or replacement at our discretion. The warranty excludes damage resulting from improper installation, firmware modifications, or operation outside specified conditions. Software updates are delivered over-the-air at no additional cost. Technical support is provided to all customers under an individual service contract.

Customization Options

Custom screen sizes, interfaces, and integrations available upon request.
Optional add-ons, such as remote sensors, antennas, or mounting kits available.
