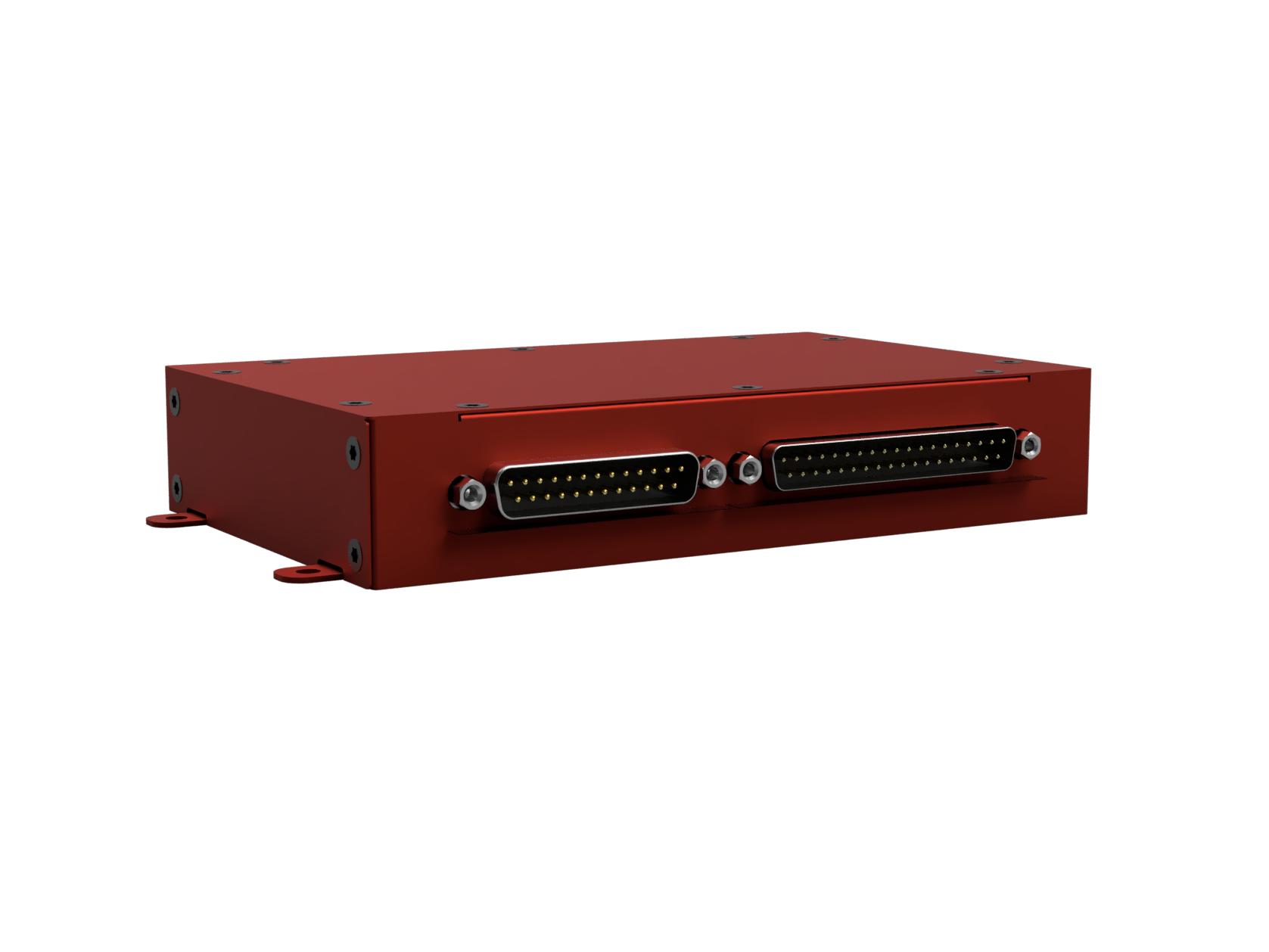

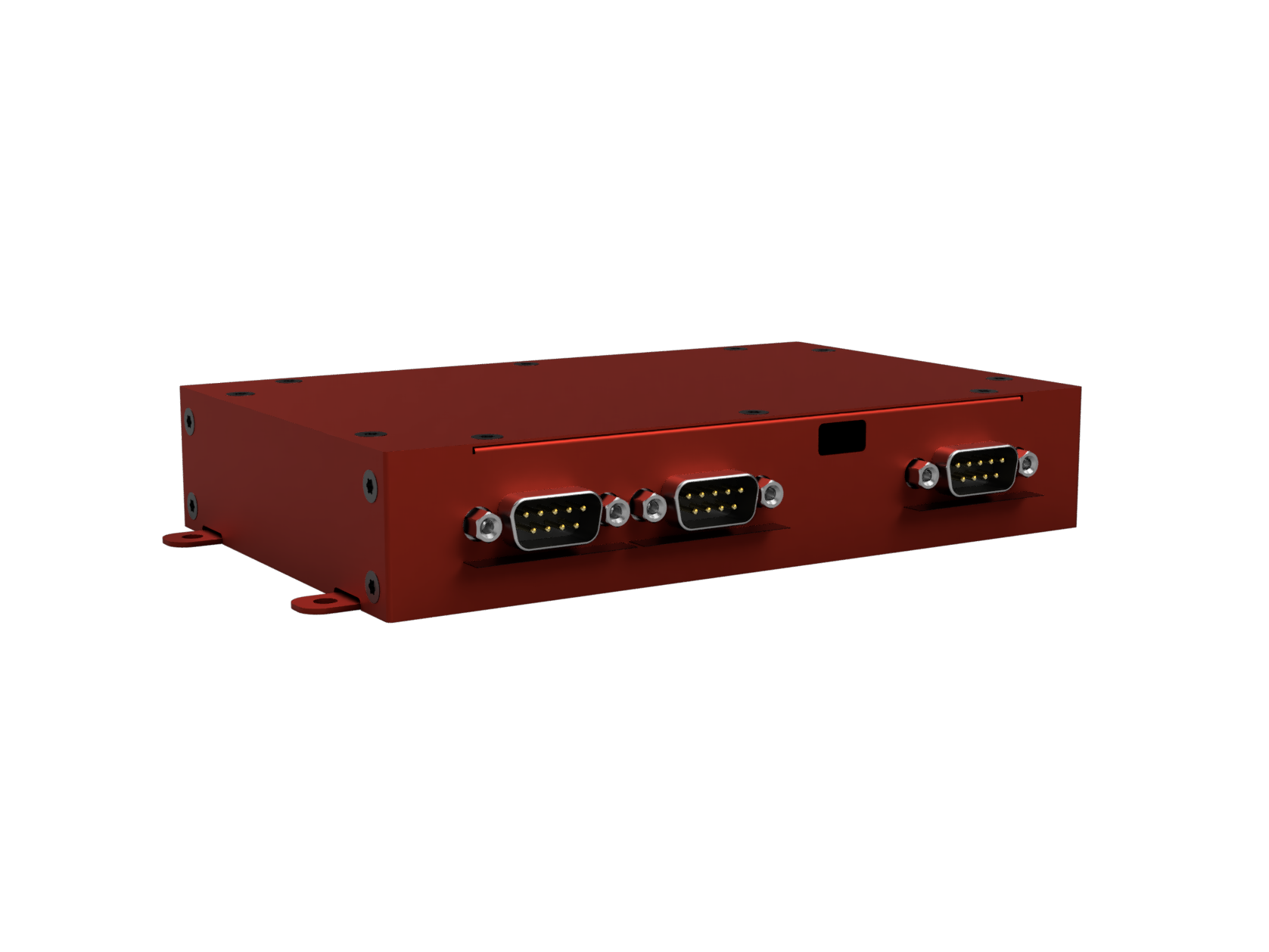

Engine Monitoring System (EMS)

654,00

For carburetor engines & FADEC CAN-BUS Rotax engines

Technical data
Dimensions (W × H × D) 172 × 31 × 98 (1106) mm
Weight 250 g
Power supply voltage 10 – 40 V DC
Power consumption (typical) 2.4 W
Current draw (typical) 0.2 A at 12 V nominal
Temperature range −20 °C to +60 °C
Interface CAN-BUS

1 Depth including connectors

Pricing Notes

All prices exclude VAT, shipping, handling costs, duties, import taxes and will be calculated in the quote we will send you.

Product Use Disclaimer

Not certified for use in certified aircraft. Buyers are solely responsible for ensuring compliance with applicable local aviation regulations before installation and use.

Order & Payment Terms

Full payment is required prior to shipment. For large or custom orders, contact us to discuss terms.

Shipping Information

Worldwide shipping available.
Estimated delivery times will be confirmed upon order.

Warranty and Support

Hardware is covered by a 1-year limited warranty from the date of delivery, covering return, repair, or replacement at our discretion. The warranty excludes damage resulting from improper installation, firmware modifications, or operation outside specified conditions. Software updates are delivered over-the-air at no additional cost. Technical support is provided to all customers under an individual service contract.

Customization Options

Custom screen sizes, interfaces, and integrations available upon request.
Optional add-ons, such as remote sensors, antennas, or mounting kits available.
